EPIC Case Study: Electronics & 3D Design

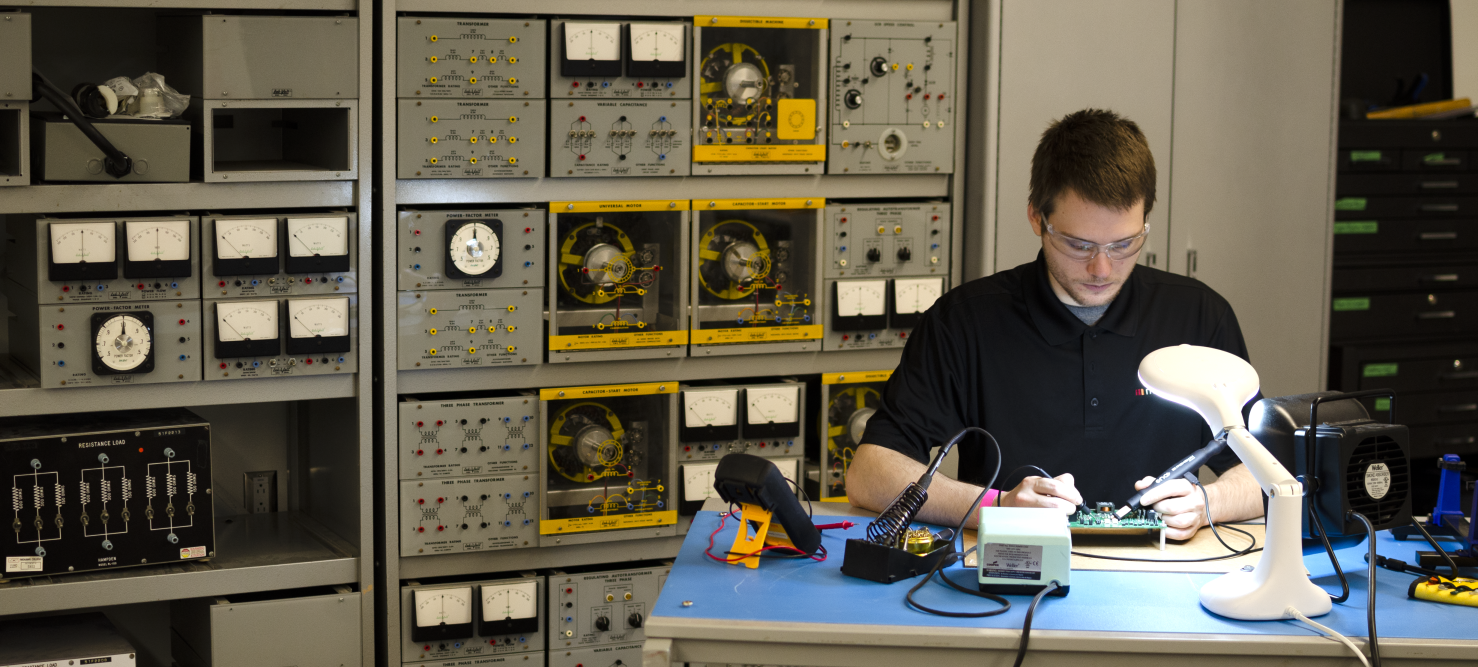

Person testing electronic device (shortfinder).

Short-Circuit Brush Finder Prototype

Company: ENA Electronics Laboratories
Funder: Ontario Centre of Innovation and NSERC

Energy & Power Innovation Centre logo

The Energy & Power Innovation Centre (EPIC) provides expertise and facilities to support Canadian companies with their operational challenges with a particular focus on energy and resource management. EPIC also supports utilities and electrical companies with developing new solutions, as well as training in state-of-the-art facilities.

EPIC is also home to the Energy & Power Technology Access Centre (TAC), a national resource for
the Canadian manufacturing and agri-food sector. As a TAC, EPIC helps companies who would like to adopt energy technologies that can reduce operating costs throughout the manufacturing process and/or de-risk the implementation of new technologies.


Shortfinder device with caps and probe

Project Summary

EPIC Project Team: Joshua Macdonald Taddeo, Justin Valenti and Mariano Arriaga
ENA Project Team: Marc Hickling, Amir Pasalic

ENA Electronics Laboratories (ENA) collaborated with Mohawk College’s Energy & Power Innovation Centre (EPIC) to support the design and development of a short-circuit finder brush. This electronic brush is a key tool to simplify the detection of electrical conductivity between two points in printed circuit boards (PCBs). ENA’s core services are PCB reverse engineering (RE) and repair; an electronic brush would help the company expedite the RE process and improve quality control for repaired boards. Although ENA has internal expertise in electronics design, its current business volume did not allow the company to develop the tool in-house.

To design the new electronic brush, the research team upgraded the original ENA’s PCB design, selected the brush material selection and designed a  full 3D printed case. The research team produced several  iterations of the prototype to secure the design and operational ease of the short-circuit brush finder. As a result of EPIC’s expertise and advanced equipment, the device is now used by ENA in their daily activities.


Context

Industrial equipment is typically installed to last for years and represents a significant capital investment. As equipment ages, certain components fail; however, if the core parts of the installation are still operational it is not always necessary to replace the full system.  ENA serves a niche market in the wind energy and nuclear sector where there is a demand for replacement PCB components. In most cases, these damaged components support critical operations where time and quality are vital.  While ENA knew that an electronic brush could help reduce the time it took to produce components, this type of brush was not commercially available.

About ENA

Hamilton, Ontario-based ENA Electronics Laboratories is an engineering company that specializes in industrial electronic repair, electronic engineering, reverse engineering, and renewable component repair. ENA Electronics also provides full repair services for servo motors in addition to their electronic counterparts. Its electronics engineering laboratory is built to provide innovative results and extraordinary problem-solving. The expert team at ENA supports the process automation sector and the renewable component industry. They currently service the automotive, pulp/paper, food/beverage, wind & solar, power, and military industries.



3D Case Prototype

The EPIC team began with designing and 3D printing a case for the brush with the support of Mohawk College’s Additive Manufacturing Innovation Centre (AMIC). The final product resulted in a slim and comfortable handheld case.

Drawing of a 3D CAD model

Design Phase

The 3D case design was the first deliverable since the PCB design would be constrained to the case’s physical layout. An iterative design approach was required to obtain a prototype that met ENA’s requirements including brush mount, overall look, strength, and feel.

Examples of 3D printed cases for the shortfinder

Prototype Printing

The preliminary prototypes were printed in-house using AMICs Fused Deposition Modeling (FDM) 3D printer.  This allowed the EPIC team and ENA to know how the device would feel when held and get a better understanding of the functionality of the mechanical components.

Final case design of the shortfinder

Final Case Design

The final case design was produced using Selected Laser Sintering (SLS), selected due to cost and for its quality and strength that is comparable to injection molding. Mohawk delivered prototypes for ENA to review and assess long-term performance.



Printed Circuit Board (PCB) Design

The short-circuit brush finder had to be able to detect electric short-circuits between two points, as well as to easily adjust the continuity threshold of the device. In addition, the short-finder brush was required to be battery operated, with easy changing capabilities.

Sample of the Shortfinder’s circuit diagram

Circuit Design

The circuit design was a starting point before the PCB could be designed. Using ENA’s expertise, the circuit design was reverse-engineered from a discontinued short circuit finder. It was updated to provide additional features: a battery charging circuit and a pushbutton on/off controller.

Breadboard with circuit connections

Circuit Testing

An iterative circuit testing process was also required to achieve base functionality, as well as to ensure that the added functionality features did not interfere with the core purposes of the device. Mohawk College worked closely with ENA to leverage its broad in-house electronics expertise.

Examples of prototype and final PCB designs

PCB Design/Testing

The PCB was designed to fit the 3D casing designed during the first phase. Getting all components to mechanically and electrically operate as desired required a few PCB versions. A set of preliminary versions were sent to ENA to get feedback from PCB designers and the users of the device.

Results

Working prototypes were delivered to ENA for their internal use and for their consideration as a potential commercial opportunity. The short-circuit brush finder is now providing ENA a functional and replicable tool that will save time while reverse engineering PCBs, especially when, as is often the case for older equipment, no related diagrams or documentation are available. In addition, both engineers and repair technicians will also be able to acquire a greater understanding of how different electronic devices work to either repair or reproduce the product. Ultimately, this will benefit ENAs customers by providing faster turnaround time on electronic repairs and reverse engineering services.
